E2000

The ultimate for wellness, fitness and relaxation.

E2000 Endless Pools® Fitness Systems

Until now, your personal wellness “to-do” list looked more like a “wish” list. But what if you could achieve your fitness goals, then relax with warm water hydrotherapy, all in one place, right at home?

The E2000 delivers on that promise. The E2000 boasts the industry’s best swim-in-place experience, now with a dedicated spa side, so you can regulate temperatures on both sides, independently. We’ve paired the industry leading Endless Pools Swim Machine with our optional underwater treadmill, low-impact exercise equipment plus relaxing warm water hydrotherapy. Swim, run, exercise and then relax, all in the privacy of your backyard, any time you want.

Specifications

Spec 58″ Swim & Treadmill 58″ Swim
Dimensions 20′ L X 58″ H X 89″ W Swim Side: 15′ L X 58″ H X 89″ W Spa Side: 5′ L X 36.5″ H X 89″ W 20′ L X 58″ H X 89″ W Swim Side: 15′ L X 58″ H X 89″ W Spa Side: 5′ L X 36.5″ H X 89″ W
Water Capacity 2,350 Gallons Swim Side: 2000 Gallons Spa Side: 350 Gallons 2,395 Gallons Swim Side: 2045 Gallons Spa Side: 350 Gallons
Weight 4,195 Lbs (Dry) / 25,545 Lbs (Filled*) 4,090 Lbs (Dry) / 25,815 Lbs (Filled*)
Shell Color Options Alpine White or Ice Gray Alpine White or Ice Gray
Cabinet Color Options Dark Mocha or Gray Oak Dark Mocha or Gray Oak
Swim Technology Endless Pools® Swim Machine Endless Pools® Swim Machine
Swim Power Unit 5 HP Hydraulic Power Unit 5 HP Hydraulic Power Unit
Treadmill Power Unit 5 HP Hydraulic Power Unit Not Applicable
Control System 2 LCD Control Panels 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel 2 LCD Control Panels 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel
Substructure 14-Gauge Galvanized Steel Frame 14-Gauge Galvanized Steel Frame
Base Pan Thermoformed ABS Base Pan Thermoformed ABS Base Pan
Energy Efficiency Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law
Music Option 8 Speakers + Subwoofer, Bluetooth® Enabled 8 Speakers + Subwoofer, Bluetooth® Enabled
Vinyl Cover & Lifter Options Watkins Bi-Fold Covers & Lifters or VacuSeal® Cover System Watkins Bi-Fold Covers & Lifters or VacuSeal® Cover System
Additional Options Endless Pools® Pace Display, Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App Endless Pools® Pace Display, Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App
Swim Side
Spa Side
Seats Bench Seat 4 Hydrotherapy Seats + Cool Down Seat
Hydrotherapy Jets – 34 Not Applicable 2 Large Jets 2 Rotary Jets 4 Directional Jets 26 Mini Jets
Hydromassage Jet Pump Not Applicable 2 – 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque  – 1 Speed Pumps
Water Feature 2 Illuminated Waterfalls 1 Illuminated Waterfall
Water Management System High-Flow Circulation Pump Circulation Pump
Effective Filtration Area 200 Square Feet (4 x 50 Square Feet) 50 Square Feet
Lighting System 14 Multi-Color LED Points of Light, 5″ Main Light & LED Illumination Bar 12 Multi-Color LED Points of Light
Heater 4000w/230v 4000w/230v
Insulation Tri-Thermic® Barrier System Full Foam Insulation
Stainless Steel Grab Rails 3 Satin Stainless Steel Rails Not Applicable
Exercise Equipment Options Swim Tether and Rowing Kit Not Applicable
*Includes water and 10 adults weighing 175 lbs. each

Features

The Original Endless Pools® Swim Machine

A custom-made, hydraulically powered propulsion system creates a laminar current of up to 5,000 gallons per minute (GPM) that is wider than your body and deeper than your stroke. Multiple conditioning grills smooth and redirect the water, resulting in a swim current that is free of turbulence. Swim Machine flow speed ranges from 5:00 to 1:08 minutes per 100 yards and can be easily adjusted for precise pace selection.

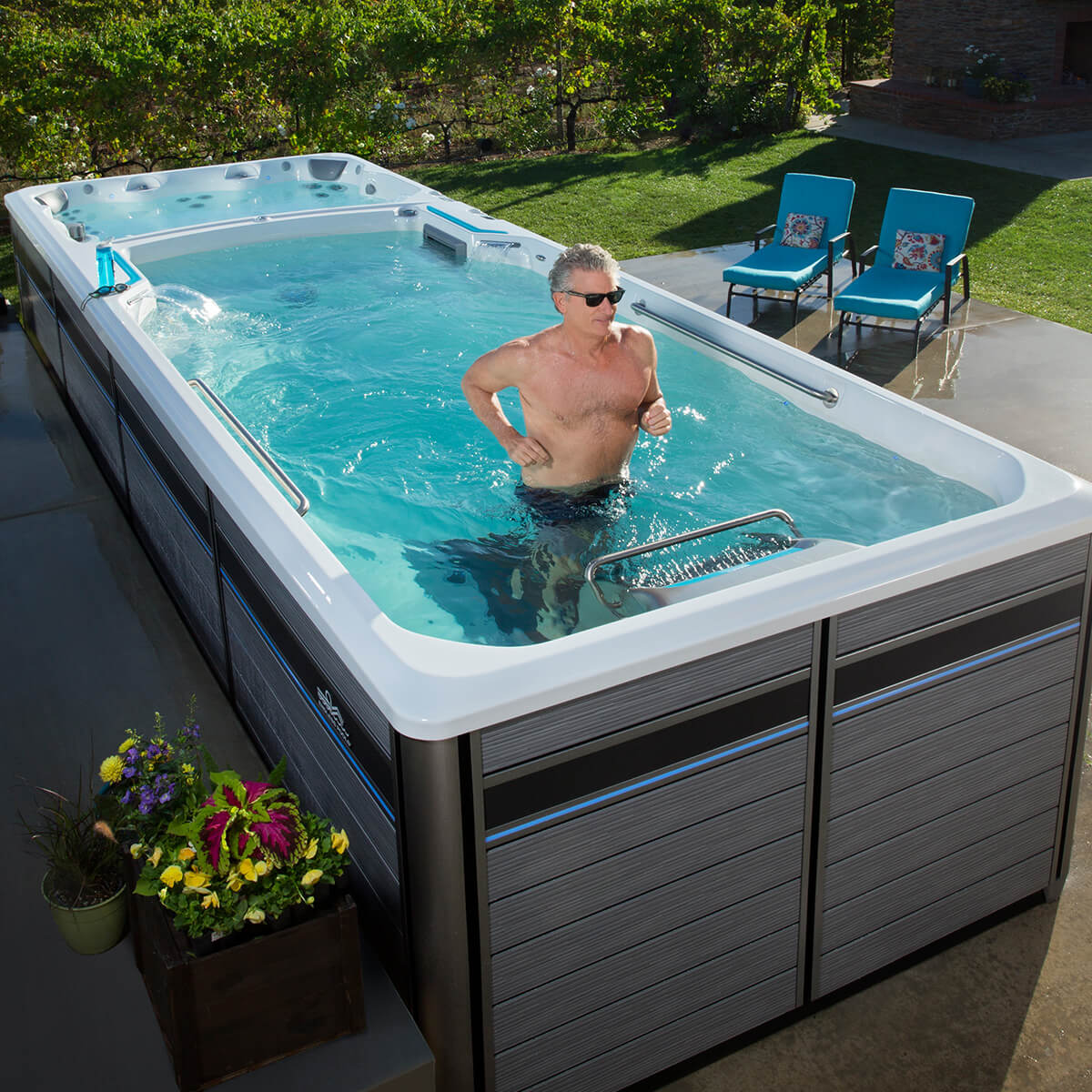

Underwater Treadmill

The optional Endless Pools hydraulically powered underwater treadmill offers low-impact running and walking options for all of the cardiovascular benefits of exertion without the negative side effects often felt with land-based exercise. Treadmill speeds vary from 0 – 5.5. MPH and can be combined with the swim current for increased resistance against core, leg, and upper body muscle groups.

More Spacious Swim Area Than Ever Before

In designing the E2000, we optimized the swim side area given the hydrotherapy seats now have their own section. Moving the entry steps and filter area to the back of the swim area provides even more space for rowing and resistance exercises.

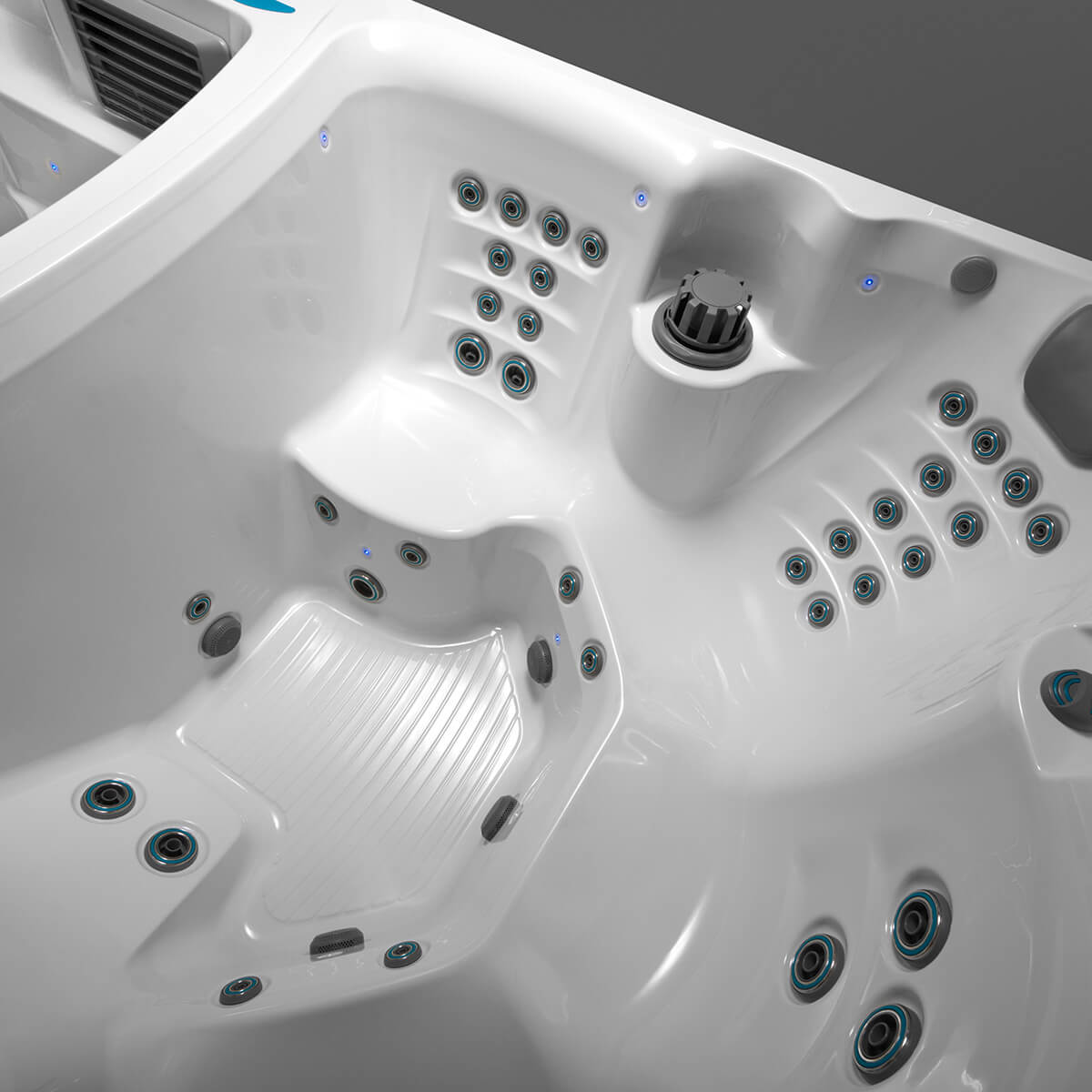

Dedicated Spa Side with 4 Spa Seats with Hydromassage Jets Plus Cool-Down Seat

Following your workout, there is nothing like a “cool-down” in the comfort of spa seating where hydromassage jets soothe your muscles. Perfectly positioned in two captain’s chairs with pillows, plus two seats, four jet types are combined in four configurations to deliver an ideal post-workout relaxation experience.

Mini Jet – A small and focused stream of water targets specific areas.
Directional Jet – Similar to the mini, the directional jet is focused but with a larger stream of water.
Rotary Jet – Same level of water pressure as the directional jet, but rotates to create a circular massage pattern to cover a larger area.
Cluster Jet – A unique soft tissue massage targets the lower back.

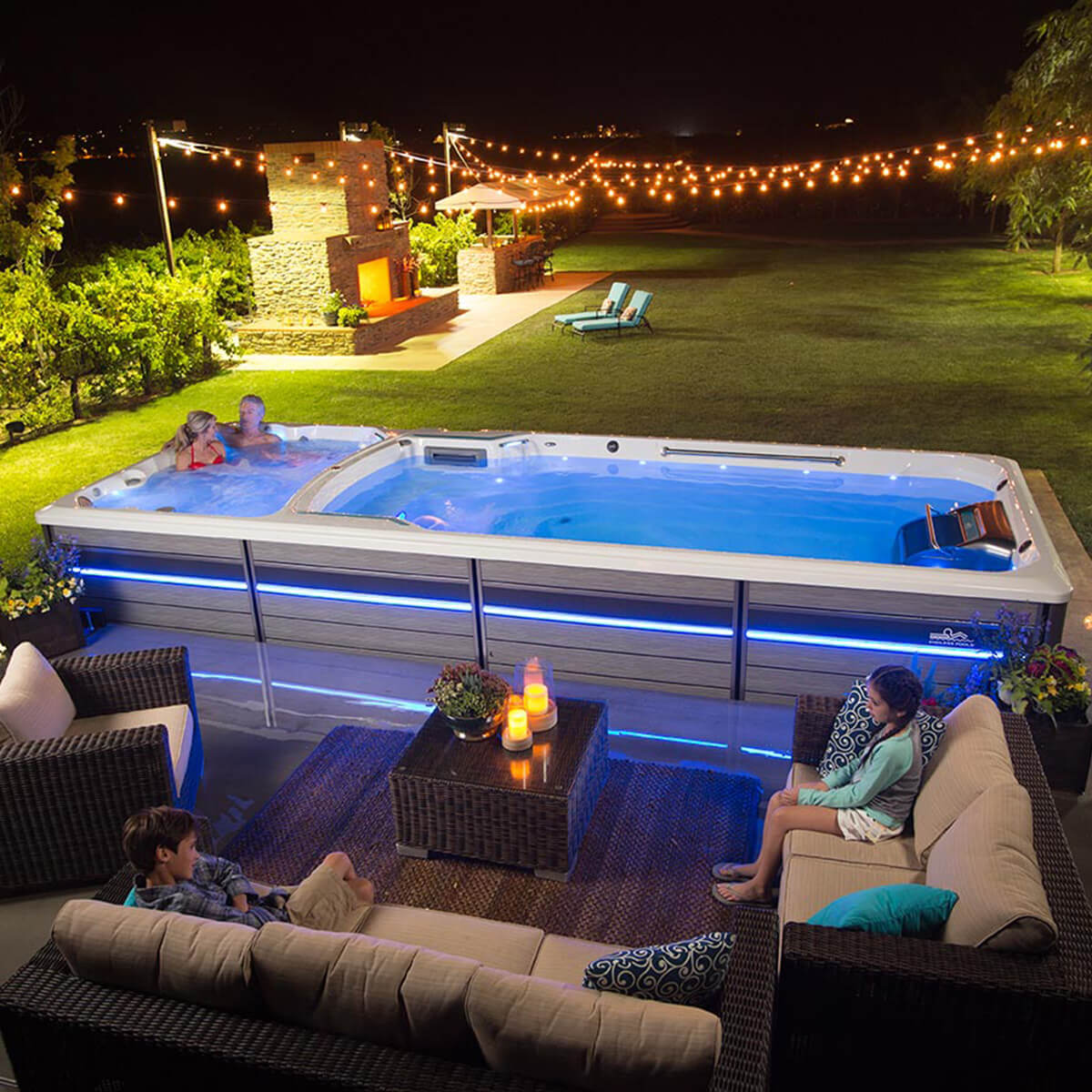

LED Illumination

The stunning lighting of Endless Pools Fitness Systems delivers maximum design impact. The blue LED Perimeter Illumination Bar provides visual appeal at night, while a 5” main interior light and multi-color LED points of light provide ample brilliance and beauty. The three water features are also backlit for added elegance.



Remote Control for Swim Machine & Underwater Treadmill

The swim machine and underwater treadmill are each managed by individual remote controls that allow you to increase or decrease speed on the fly. The swim machine flow ranges from 5:00 to 1:08 minutes per 100 yards, and can be easily adjusted for precise pace selection. The treadmill has a speed range of 0 to 5.5 MPH.



Hydraulic Power Unit

The Hydraulic Power Unit (HPU) is the heart of the Endless Pools Fitness Systems. It pumps high-grade biodegradable vegetable oil to the underwater motor for both the swim machine and the treadmill. Fitness Systems with both a treadmill and swim machine contain two HPUs which are driven by an incredibly efficient 5HP motor. This design allows for maximum power, while remaining energy efficient.



14-Gauge Steel Frame & ABS Base Pan

All Endless Pools Fitness Systems are built on an extremely durable, 14-gauge galvanized steel frame and ABS base pan. While many see this as an area to cut costs, Endless Pools went a cut above the rest by making this a standard feature on all products. The structural elements of the steel frame and ABS base pan provide the ultimate strength to deliver confidence in ownership for years to come.



Water Management System

Endless Pools Fitness Systems feature a dual water purification system that combines Ultraviolet C (UVC) with eco-friendly CD Ozone, commonly known as Advanced Oxidation Process (AOP), to neutralize contaminants. The continuous water rotation from the circulation pump, coupled with 200 ft. of filtration, ensures ease of maintenance and water that is always exercise-ready. On the spa side, CD Ozone keeps water fresh.

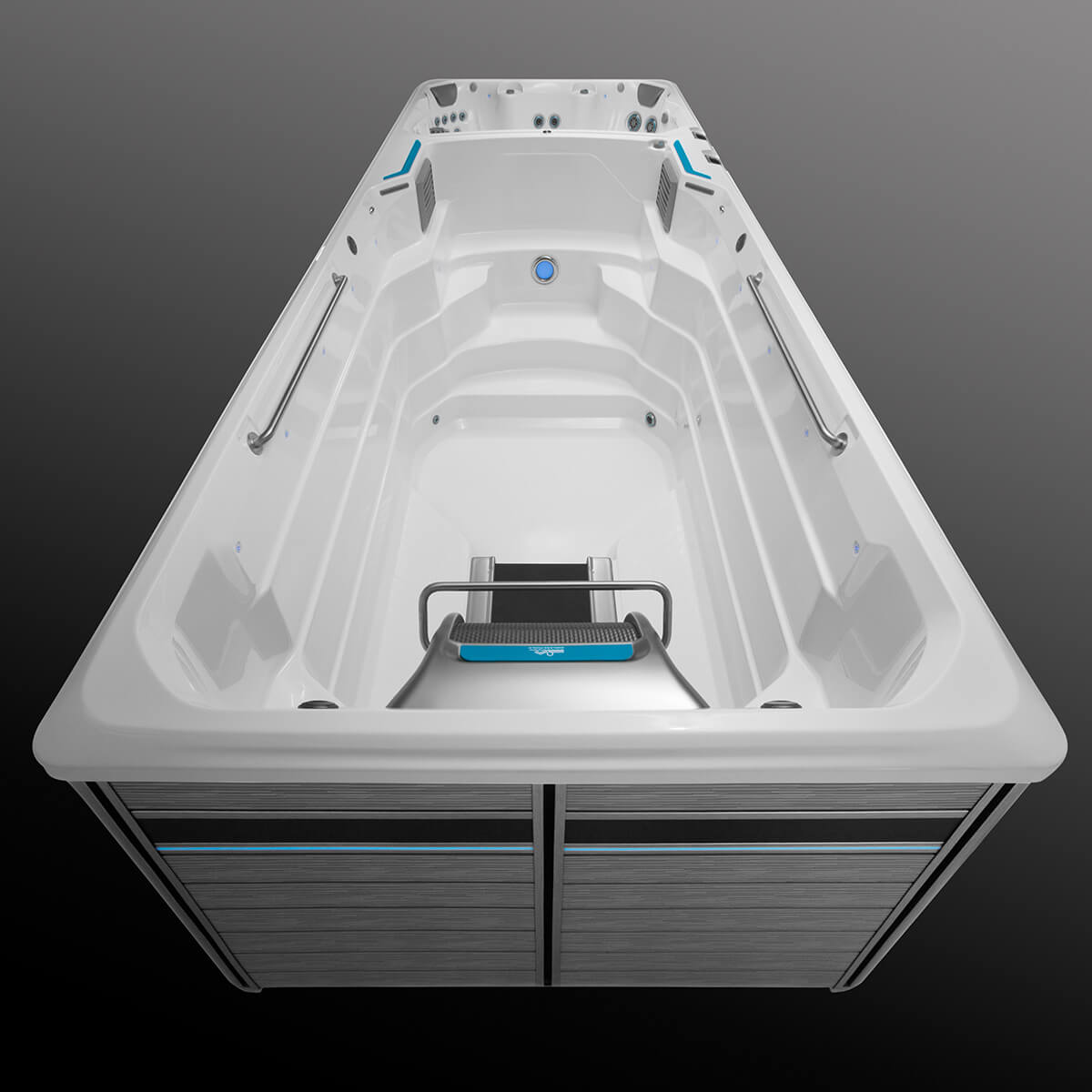

1200x1200-endless-pools-e2000-feature3-gallery

Energy Efficiency

On the swim side, the Tri-Thermic™ Barrier System, a standard feature, provides three layers of insulation to conserve heat, enhance the energy efficiency, and lower operating costs. The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystyrene) foam and reflective film attached to the inside of the cabinet, combined with a two-inch think heat blanket made of high-quality recycled textile fibers and foil film, attached on the inside of the steel frame. Together these materials provide maximum thermal performance.

The spa side has been fully foamed for heat retention and energy efficiency.

The E2000 achieves certification to current California Energy Commission (CEC) and APSP 14 National Standards and already meets the upcoming 2018 CEC Standards.

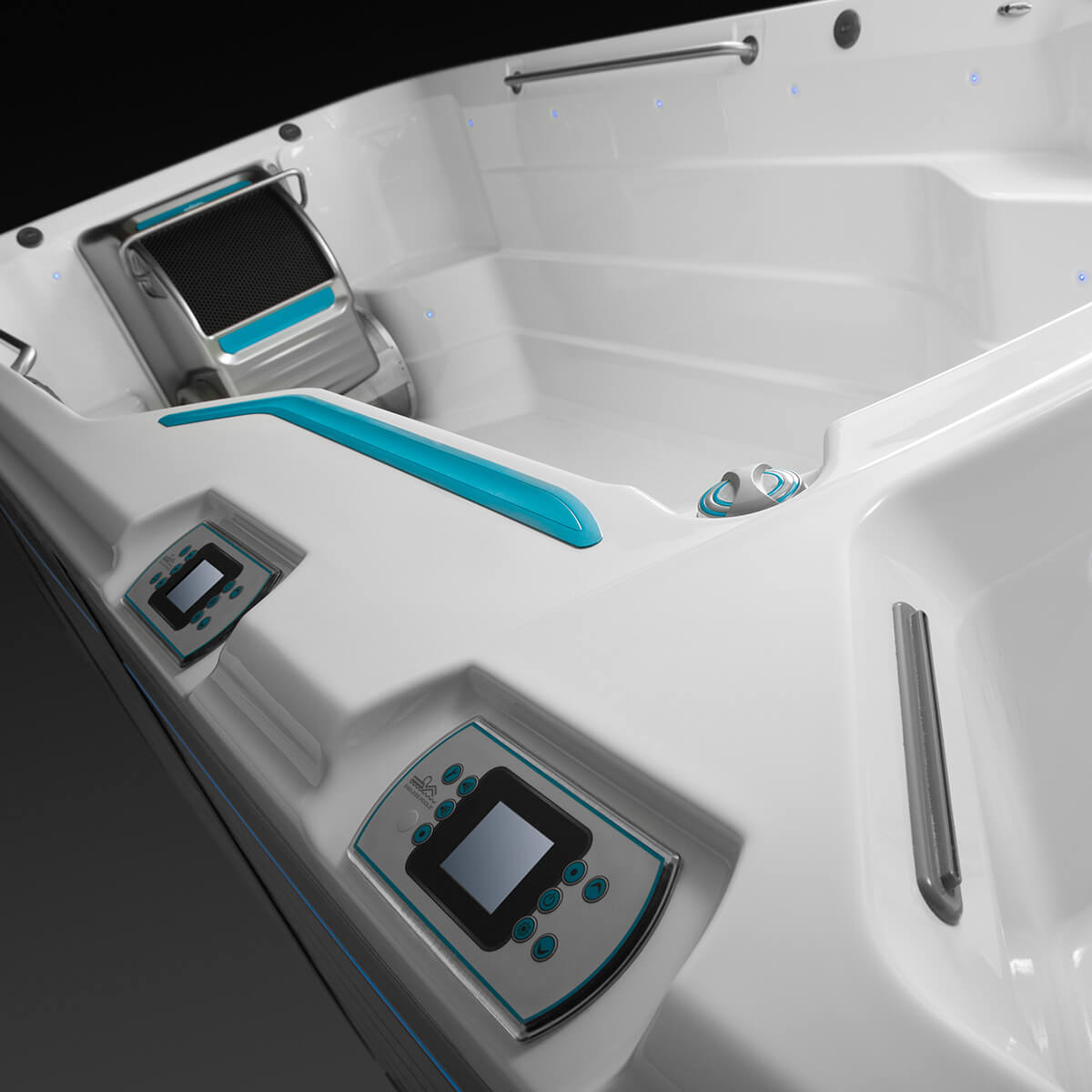

Control & Auxiliary Panels

E2000 features two LCD control panels that makes it easy to navigate component controls on the swim and spa sides. Functions include on/off, water temperature and water care management, as well as control of the interior lighting, and hydromassage jets.

Install the optional plug-and-play Wifi and Mobile App and you’ll gain full control of the system’s temperature, lights and jets from any wifi-enabled tablet or mobile device.



Anchors and Handrails for Aquatic Fitness Accessories

Every fitness and exercise system is equipped with built-in anchors to attach fitness accessories including an optional swim tether, row bar set and resistance bands. The convenient and sturdy handrails are also great for support or for attaching resistance bands.

Accessories

Row Bar Kit with Resistance Gear

Rowing is an exceptional cardiovascular exercise that keeps the heart rate elevated and strengthens core muscles. Attach resistance bands to the sturdy handrails for added workout options.

Step up the performance of any Fitness or Exercise System with the optional rowing and resistance gear. Attach the optional row bars to the built-in anchors and/or handrails to experience a low-impact, full body workout.

Swim Tether

All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.

Pace Displays

The optional pace display is a necessity for any swim machine or treadmill user who wants to measure performance. It allows for easy reading of the swim current pace and/or treadmill speed, and can be toggled from meters to yards or viewed as a percentage of the top speed. With individual pace displays for swim machine and treadmill, Fitness System owners can use both simultaneously for a more effective workout.

Watkins Cover & Lifter

A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.

VacuSeal™ Lifting System

The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.

Underwater Mirror

See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.

Bluetooth® – Enabled Sound System

For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.

Wifi and Mobile App

Ask your Endless Pools® retailer about installation of the optional plug-and-play Wifi and Mobile App. With this added feature, you’ll gain full control of the system’s temperature, lights and jets from any Wifi-enabled tablet or mobile device.
